New system seeks to upgrade explosive ordnance disposal robots, aid technicians

Published Jan. 22, 2024
By Jeremy Dunn
Air Force Research Laboratory Public Affairs

On behalf of the Department of the Air Force, as one laboratory supporting two services, the Air Force Research Laboratory has developed the Air and Space Forces Science & Technology (S&T) Front Door, to connect potential partners with S&T experts and opportunities. The department recognizes that innovative ideas often come from small businesses, industry, academia, or even a project in your neighbor's garage that can help solve problems the department has identified. Visit www.airforcetechconnect.org for more information. (U.S. Air Force graphic/Randy Palmer)

WRIGHT-PATTERSON AIR FORCE BASE, OHIO (AFRL) — A new system seeks to aid explosive ordnance disposal, or EOD, technicians by adding a simple and inexpensive system to improve depth detection while controlling disposal robots to manage counter-improvised explosive device, or C-IED, operations. The system, which increases precision and safety for EOD personnel, is the product of collaboration between the Air Force Research Laboratory, or AFRL, AFWERX and Air and Space Force Tech Connect, a service to connect potential partners with Department of the Air Force science and technology experts and opportunities.

“The EOD robot senses its environment using infrared sensors, which is in line with what we do,” said Dr. Mohammad Imran Vakil, senior electronics engineer at AFRL’s sensors directorate. “We’re hopeful our work will save lives and prevent injuries to the Airmen working in the field.”

Vakil specializes in developing sensing system architecture as part of AFRL’s Infra-Red Imaging Systems Lab, using Tech Connect and other outreach methods to stay abreast of new technologies and ideas.

A Man Transportable Robotics system is used to assess an improvised rocket during Exercise GOLDEN CRAB on Beale Air Force Base, California, Sept. 20, 2023. An explosive ordnance disposal team was sent out to respond to a long range threat and used the robotics system to assess the situation from a safe distance. (U.S. Air Force photo by Senior Airman Alexis Pentzer)

EOD technicians seek to mitigate the risk of explosive materials and other hazards in various environments and situations. Robots are often used in C-IED operations to shield personnel from unnecessary harm.

“Precision is everything for an EOD technician because there is no margin for error,” said Tech. Sgt. Daniel Trombone, EOD Team leader at the 99th Civil Engineer Squadron at Nellis Air Force Base, Nevada. “It is critical that they solve as many problems as possible with their robot before directly exposing themselves to the danger.”

Currently, the robots used by EOD teams do not have a way to determine depth and rely on two-dimensional cameras and displays to operate. Since the robots must navigate three-dimensional environments, the lack of three-dimensional perception can create unnecessary risks not only for EOD technicians but also for civilian bomb squads and allied explosive disposal teams.

The system uses infrared sensors and LED lights to give EOD robot operators an improved sense of depth, allowing them to manipulate the robots more accurately and safely. It also has the advantage of being more cost-effective than other solutions, such as stereoscopic cameras, which are more expensive, susceptible to jamming and more complicated to repair in the field, according to Trombone.

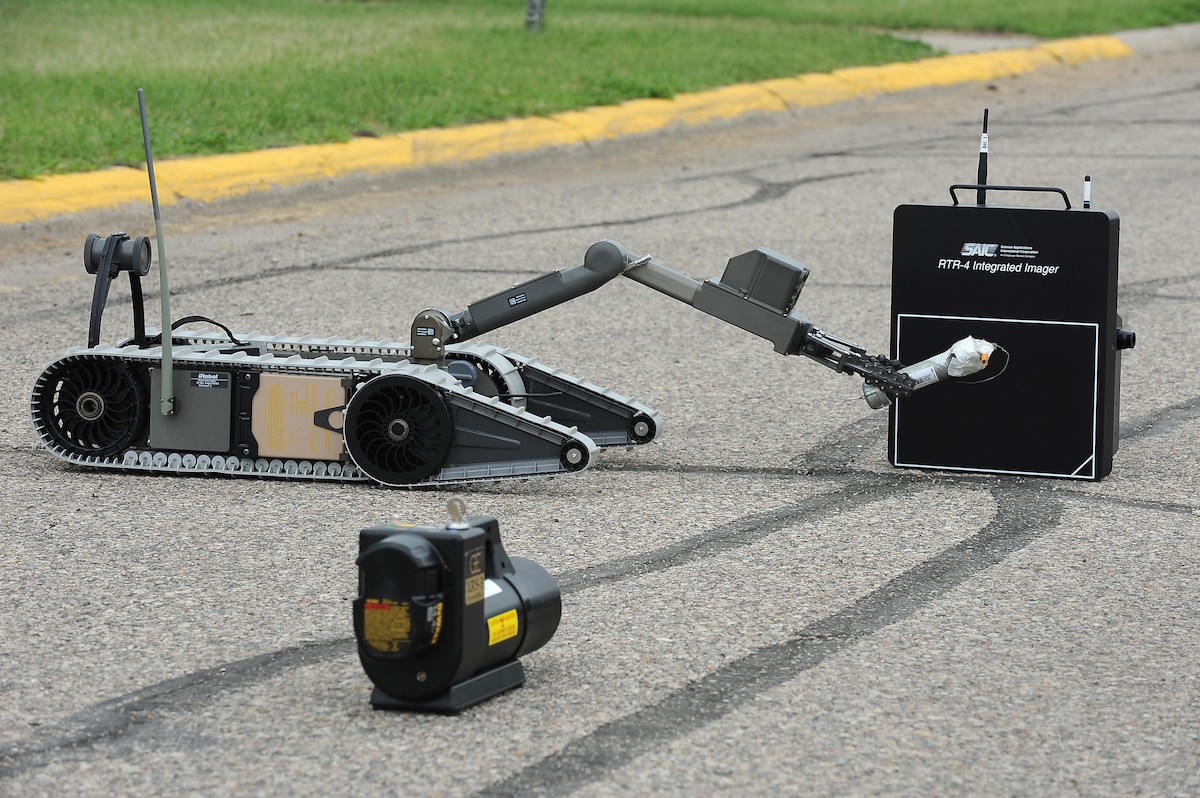

An EOD robot remotely operated by members of the 5th Civil Engineer Squadron explosive ordnance disposal, performs diagnostics on a simulated pipe bomb during an exercise here June 6. The robot is used by 5th CES EOD personnel to recon areas not cleared for human entry and disarming potential explosive devices. Exercises like these are vital training tools used throughout the year to ensure wing personnel are trained to provide safe, secure, effective conventional and nuclear operations as mandated by Air Force Global Strike Command.

Tech Connect was recommended for the system through AFWERX Refinery, which connects Airmen and Guardians with relevant resources and subject matter experts within the Department of Defense. Tech Connect then provided recommendations on to refine the prototype through collaboration with AFRL engineers.

“Most of us don’t realize how impactful Tech Connect is,” said Dr. Vakil. “[We] can directly have a conversation with engineers and scientists to evaluate if their technology will be a good fit for our needs.”

Next for the new depth perception system is further refining of the prototype in partnership with AFRL engineers with the goal of using more state-of-the-art electronics to make the system smaller, more precise and better suited to long-term sustainment for a future manufacturer, according to Trombone.
